D^3CTF2025 Re-wp&复现

D3piano

按正确的音色弹琴拿到flag。

逻辑在so里面，加载了D3piano。查看后看字符串可以定位到check函数。

里面是一个gmp库实现的ras校验，获取公钥即可解密。这里用fridahook获取。

因为是大数，寄存器里应该是一个结构体，这里我们用frida调用gmpz_get_str把hook的数据转为十六进制。

有frida检测，在player.so的init_array里面，hook去掉检测。

//frida version 17.1.0

function reada(){
    var f = File.readAllText("/proc/self/task");
    console.log(f)
}

function findSo(name){
    var lib=null;
    console.log(`finding ${name}`);
    try {
        lib = Process.findModuleByName(name)
        if (lib === null) {
            setTimeout(findSo,200,name);
        }
        else {
            console.log(`found ${name} at ${lib.base}`);
            return lib;
        }
    } catch { }
}

function hookI(name) {
    var lib = findSo(name);
    try {
        var destFuncAddr = lib.base.add(0x08922A0);
        Interceptor.replace(destFuncAddr, new NativeCallback(function () {
            console.log(`replace: ${name} func: ${destFuncAddr}`);
            return 0;
        }, 'int', []))
    } catch { }
}

function hookInitArray(name) {
    var linkermodule = Process.getModuleByName("linker64");
    var call_function_addr = null;
    var symbols = linkermodule.enumerateSymbols();

    for (var i = 0; i < symbols.length; i++) {
        var symbol = symbols[i];
        // console.log(symbol.name);

        if (symbol.name.indexOf("__dl__ZN6soinfo17call_constructorsEv") != -1) {
            call_function_addr = symbol.address;
            console.log("call_function_addr:" + call_function_addr);
            Interceptor.attach(call_function_addr, {
                onEnter: function (args) {
                    console.log("call_constructors");
                    hookI(name);
                }
            })
            return;

        }
    }
}

function hook(){
    var addr = null;
    try {
        var module = Process.getModuleByName("libc.so");
        addr = module.getExportByName("dlopen");
    } catch (e) {
        console.log(e);
    }
    console.log("dlopen:",addr);
    Interceptor.attach(addr,{
        onEnter: function(args){
            var loadName = args[0].readCString();
            console.log("dlopen: ",loadName);
        },
        onLeave: function (retval) {
        console.log("handle:", retval);
    }
});

    var android_dlopen_ext = module.getExportByName("android_dlopen_ext");
    console.log("android_dlopen_ext:",android_dlopen_ext);
    Interceptor.attach(android_dlopen_ext, {
        onEnter: function (args) {
            this.call_hook = false;
            var so_name = ptr(args[0]).readCString();
            console.log("android_dlopen_ext:", so_name);
        },
        onLeave: function (retval) {}
    });
}
function getpq(){
    var libapp = findSo("libD3piano.so").base;
    const fn_addr = 0x29AA0;
    console.log("hook"+libapp);
    Interceptor.attach(libapp.add(fn_addr), {
        onEnter: function () {
            try{
            var x1 = this.context.x1;
            var x2 = this.context.x2;
            var gmpz_get_str = new NativeFunction(libapp.add(0x5CFD0),"pointer",["pointer","int","pointer"]);
            var mallocAddrp = Memory.alloc(0x1000);
            var mallocAddrq = Memory.alloc(0x1000);
            var p = gmpz_get_str(mallocAddrp, 16, x1);
            var q = gmpz_get_str(mallocAddrq, 16, x2);
            console.log(mallocAddrp.readCString());
            console.log(mallocAddrq.readCString());

            }catch(e){
                console.log(e);
            }
        }
    });
}

hookInitArray('libMediaPlayer.so'); //hook initarray去掉反调试

getpq();

拿到pq

from Crypto.Util.number import long_to_bytes
import gmpy2

p = 0xcd88775691357147eea5dc584718edab9ca314cdd52a8c1cf847dbbb8371798f15e9bdca2bfaa4595d47eecae21bea38691a26e1c707867b5ea2f6f2f03bf4d
q = 0x565c0138487b57e4b76d0924163f67facb17a77f83e354cc3c8432879dab4611c2442cdd73f71c9e6cb4e56a7c45a403148e6d558f986ec6505882ae095c34d3

n = p * q

e = gmpy2.mpz(65537)

enc = 0xc901acacbb426c9c447acda82513965ccc3faf6c9dc58d24ed34b62c7fb1548f9ad06b9355c7d20704cfdfdfc89a3f893801e31719564683fdc7de26d807ed27f898edb3efd51b6e8e2a192d6a0929554342adfed541cd8399da0fbacfeaa5b608b887fd74f4f0e31f9bb5816c54163b8e46d27553798233bef6eaf848c64e

m = pow(enc, e, n)
plaintext = long_to_bytes(m)

print(plaintext)

#b'This_is_a_fake_flag'

解密到fake flag。

仔细看init_array中的内容可知它内置了一个frida，把加密函数和获取声音的函数全部hook了。我们要去寻找hook的listener来看hook后的操作。

根据多线程的信号量可以知道执行顺序。

listener1 hook获取sound顺序的函数的返回值，让sound的顺序固定。

listener2 hook check调用两个虚表函数进行检测，onLeave修改原函数的返回值。

listener3 hook 十二进制转str的函数，把结果转为16进制字符串。

check：

LZW压缩算法。

密钥加密和魔改chacha20。

只要先把chacha20解密出来就能看出是压缩算法了。

#include "include/CTFCPP.h"
#include "include/ChaCha.h"
#include "include/LZW.h"
#include <unordered_map>

using namespace std;

int main() {

    string key = "welCoME_70_D3c7F_2025-r3VERSE!!!";
    string nonce = "CDEFGABdegab";
    vector<uint8_t> nonce1(13);
    copy(nonce.begin(), nonce.end(), nonce1.begin());
    vector<uint8_t> key1(33);
    copy(key.begin(), key.end(), key1.begin());
    vector<uint8_t> enc1 = {0x2E, 0xD2, 0xDF, 0x53, 0x41, 0xE6, 0x51, 0xA2, 0xD0, 0x8E, 0x43, 0x59, 0x6F, 0xC4, 0x15, 0xAD,
    0x97, 0xC2, 0x98, 0xBD, 0x11, 0x05, 0xFE, 0xFF, 0x96, 0x4C, 0xE8, 0x06, 0x50, 0x0E, 0x1D, 0xCA,
    0x0E, 0xB2, 0x18, 0xCA, 0x06, 0x54, 0x2E, 0xFA, 0xCD, 0x19, 0xD2, 0x9E, 0xDB, 0x9E, 0x33, 0xCC,
    0x5D, 0xAF, 0xED, 0x69, 0x4A, 0xEF, 0x17, 0xB8, 0xD8, 0x40, 0x14, 0x48, 0xCD, 0x37, 0xFC, 0xD0,
    0x14, 0x5C, 0x3C, 0x31, 0xC9, 0x15, 0xE6, 0xCF, 0x77, 0x28};

    Chacha::ChaChaEncrypt32(key1,nonce1,enc1,0x221221);

    vector<uint8_t> res = LZW::LZW_decode(enc1);
    string s(res.begin(), res.end());
    cout << s << endl;
}

chacha20，注释的地方就是bia原来

#include "ChaCha.h"

namespace Chacha
{

    static inline void u32t8le(uint32_t v, uint8_t p[4])
    {
        p[0] = v & 0xff;
        p[1] = (v >> 8) & 0xff;
        p[2] = (v >> 16) & 0xff;
        p[3] = (v >> 24) & 0xff;
    }

    static inline uint32_t u8t32le(uint8_t p[4])
    {
        uint32_t value = p[3];

        value = (value << 8) | p[2];
        value = (value << 8) | p[1];
        value = (value << 8) | p[0];

        return value;
    }

    static inline uint32_t rotl32(uint32_t x, int n)
    {
        // http://blog.regehr.org/archives/1063
        return x << n | (x >> (-n & 31));
    }

    // https://tools.ietf.org/html/rfc7539#section-2.1
    static void chacha20_quarterround(uint32_t *x, int a, int b, int c, int d)
    {
        x[a] += x[b];
        x[d] = rotl32(x[d] ^ x[a], 16);
        x[c] += x[d];
        x[b] = rotl32(x[b] ^ x[c], 12);
        x[a] += x[b];
        x[d] = rotl32(x[d] ^ x[a], 8);
        x[c] += x[d];
        x[b] = rotl32(x[b] ^ x[c], 7);
    }

    static void chacha20_serialize(uint32_t in[16], uint8_t output[64])
    {
        int i;
        for (i = 0; i < 16; i++)
        {
            u32t8le(in[i], output + (i << 2));
        }
    }

    static void chacha20_block(uint32_t in[16], uint8_t out[64], int num_rounds)
    { // num_rounds 一般为20
        int i;
        uint32_t x[16];

        memcpy(x, in, sizeof(uint32_t) * 16);

        for (i = num_rounds; i > 0; i -= 2)
        {
            // // odd round
            // chacha20_quarterround(x, 0, 4, 8, 12);
            // chacha20_quarterround(x, 1, 5, 9, 13);
            // chacha20_quarterround(x, 2, 6, 10, 14);
            // chacha20_quarterround(x, 3, 7, 11, 15);
            // // even round
            // chacha20_quarterround(x, 0, 5, 10, 15);
            // chacha20_quarterround(x, 1, 6, 11, 12);
            // chacha20_quarterround(x, 2, 7, 8, 13);
            // chacha20_quarterround(x, 3, 4, 9, 14);

            // odd round
            chacha20_quarterround(x, 0, 4, 8, 12);
            chacha20_quarterround(x, 5, 9, 13, 1);
            chacha20_quarterround(x, 10, 14, 2, 6);
            chacha20_quarterround(x, 15, 3, 7, 11);
            // even round
            chacha20_quarterround(x, 0, 1, 2, 3);
            chacha20_quarterround(x, 5, 6, 7, 4);
            chacha20_quarterround(x, 10, 11, 8, 9);
            chacha20_quarterround(x, 15, 12, 13, 14);
        }

        for (i = 0; i < 16; i++)
        {
            x[i] += in[i];
        }

        chacha20_serialize(x, out);
    }

    // https://tools.ietf.org/html/rfc7539#section-2.3
    static void chacha20_init_state(uint32_t s[16], uint8_t key[32], uint32_t counter, uint8_t nonce[12])
    {
        int i;

        // refer: https://dxr.mozilla.org/mozilla-beta/source/security/nss/lib/freebl/chacha20.c
        // convert magic number to string: "expand 32-byte k"
        // s[0] = 0x61707865;
        // s[1] = 0x3320646e;
        // s[2] = 0x79622d32;
        // s[3] = 0x6b206574;

        // for (i = 0; i < 8; i++)
        // {
        //     s[4 + i] = u8t32le(key + i * 4);
        // }

        // s[12] = counter;

        // for (i = 0; i < 3; i++)
        // {
        //     s[13 + i] = u8t32le(nonce + i * 4);
        // }
        // s[0] = 0x61707865;
        // s[1] = 0x3320646e;
        // s[2] = 0x79622d32;
        // s[3] = 0x6b206574;
        // s[4] = *(uint32_t *)&key[0];
        // s[5] = *(uint32_t *)&key[4];
        // s[6] = *(uint32_t *)&key[8];
        // s[7] = *(uint32_t *)&key[12];
        // s[8] = *(uint32_t *)&key[16];
        // s[9] = *(uint32_t *)&key[20];
        // s[10] = *(uint32_t *)&key[24];
        // s[11] = *(uint32_t *)&key[28];
        // s[12] = (uint32_t)(counter & 0xFFFFFFFF);
        // s[13] = (uint32_t)(counter >> 32);
        // s[14] = *(uint32_t *)&nonce[0];
        // s[15] = *(uint32_t *)&nonce[4];

        s[0] = 0x61707865;
        s[1] = *(uint32_t *)&key[0];
        s[2] = *(uint32_t *)&key[4];
        s[3] = *(uint32_t *)&key[8];
        s[4] = *(uint32_t *)&key[12];
        s[5] = 0x3320646e;
        s[6] = *(uint32_t *)&nonce[0];
        s[7] = *(uint32_t *)&nonce[4];
        s[8] = (uint32_t)(counter & 0xFFFFFFFF);
        s[9] = (uint32_t)(0);
        s[10] = 0x79622d32;
        s[11] = *(uint32_t *)&key[16];
        s[12] = *(uint32_t *)&key[20];
        s[13] = *(uint32_t *)&key[24];
        s[14] = *(uint32_t *)&key[28];
        s[15] = 0x6b206574;
    }

    void ChaCha20XOR(uint8_t key[32], uint32_t counter, uint8_t nonce[12], uint8_t *in, int inlen, int rounds)
    {
        int i, j;

        uint32_t s[16];
        uint8_t block[64];

        chacha20_init_state(s, key, counter, nonce);

        for (i = 0; i < inlen; i += 64)
        {
            chacha20_block(s, block, 20);
            // s[12]++;
            s[8]++;

            for (j = i; j < i + 64; j++)
            {
                if (j >= inlen)
                {
                    break;
                }
                in[j] ^= block[j - i];
            }
        }
    }

    void ChaChaEncrypt16(std::vector<uint8_t> key,std::vector<uint8_t> nonce, std::vector<uint8_t> &in,uint32_t counter, int rounds)
    {
        std::vector<uint8_t> key32(32);
        std::copy(key.begin(), key.end(), key32.begin());
        ChaCha20XOR(key32.data(), counter, nonce.data(), in.data(), in.size(), rounds);
    }

    void ChaChaEncrypt32(std::vector<uint8_t> key,  std::vector<uint8_t> nonce, std::vector<uint8_t> &in,uint32_t counter, int rounds)
    {
        ChaCha20XOR(key.data(), counter, nonce.data(), in.data(), in.size(), rounds);
    }

}

LZW就用官方wp里的了。

#include "LZW.h"
namespace LZW{
std::vector<uint8_t> LZW_decode(std::vector<uint8_t> &compressed)
{
    std::unordered_map<int, std::vector<uint8_t>> dictionary;
    for (int i = 0; i < 256; ++i)
    {
        dictionary[i] = {static_cast<uint8_t>(i)};
    }
    std::vector<uint8_t> codes;
    for (uint8_t byte : compressed)
    {
        codes.push_back(static_cast<int>(byte));
    }
    std::vector<uint8_t> result;
    uint8_t next_code = 0;
    if (codes.empty())
        return{};
    uint8_t prev_code = codes[0];
    result.insert(result.end(), dictionary[prev_code].begin(),
                  dictionary[prev_code].end());
    for (size_t i = 1; i < codes.size(); ++i)
    {
        uint8_t curr_code = codes[i];
        std::vector<uint8_t> entry;
        if (curr_code == next_code)
        {
            entry = dictionary[prev_code];
            entry.push_back(dictionary[prev_code][0]);
        }
        else if (dictionary.count(curr_code))
        {
            entry = dictionary[curr_code];
        }
        else
        {
            std::cerr << "Error: Invalid code " << curr_code << std::endl;
            return{};
        }
        result.insert(result.end(), entry.begin(), entry.end());
        std::vector<uint8_t> new_entry = dictionary[prev_code];
        new_entry.push_back(entry[0]);
        dictionary[next_code++] = new_entry;
        prev_code = curr_code;
    }
    return result;
}
}

//bEbAACEBCGGGBdBECECbdaECCGGBAaAaedBEeDdGAdDaBgededFFBFeEaFGdFEbAFEAFgdgDBDBgeggbAeFagaEedbA

把十二进制转为字符串

from Crypto.Util.number import long_to_bytes

sound = "CDEFGABdegab"
m = "0123456789AB"

melody = "bEbAACEBCGGGBdBECECbdaECCGGBAaAaedBEeDdGAdDaBgededFFBFeEaFGdFEbAFEAFgdgDBDBgeggbAeFagaEedbA"

table = {}
res =""

for i,j in zip(sound, m):
    table[i] = j

for i in melody:
    res += table[i]

res = int(res, 12)

print(long_to_bytes(res))

#b'Fly1ng_Pi@n0_Key$_play_4_6e@utiful~melody'

D3Kernel

用层通过通过动态解析函数地址来隐藏了函数的调用，暂时没发现反调试，动调看一下函数调用

从上往下依次调用

kernelbase_GetModuleHandleA(Wkernel32.dll) 加载dll

kernel32_GetProcAddress() 获取api

ntdll_RtlAddVectoredExceptionHandler() 设置异常处理函数，这里我重名名为except_func1

kernel32_VirtualAlloc() 动态分配一段内存

shellcode 触发除0异常

后执行的shellcode触发异常使得ntdll_RtlAddVectoredExceptionHandler()中的函数被执行。异常处理函数里面有很多东西没有被反编译出来。

有反调试，在_scrt_common_main_seh下断点，用scyllahide注入自带的dll可以去掉反调试。(后面找到了反调试的位置)

去除反调试加载驱动之后继续研究程序逻辑，发现跳转到了另一个异常处理函数，在第一个异常处理的函数（except_func1）的右边，重命名为except_func2

同样的except_func2里面执行的函数也是通过kernel32_GetProcAddress() 获取的，动调进去看调用的api

从上往下是

kernel32_IsDebuggerPresent()

kernel32_CheckRemoteDebuggerPresent()

发现反调试，已经用scyllahide绕过了，不必理会

继续往下执行，发现正式开始加载驱动了，逻辑来到了except_func2的左侧，

api调用按顺序依次是

kernel32_CreateFileW(”\\.\d3ctf”)

输入name和passwd

kernel32_DeviceIoControl(IOCT:0X222000) 传入输入的数据

kernel32_DeviceIoControl(IOCT:0X222004) 校验

得到IOCT码，开始分析内核

驱动里面第二个函数就是IOCT处理函数，第一个函数是线程启动的一个反调试函数直接patch掉就行。

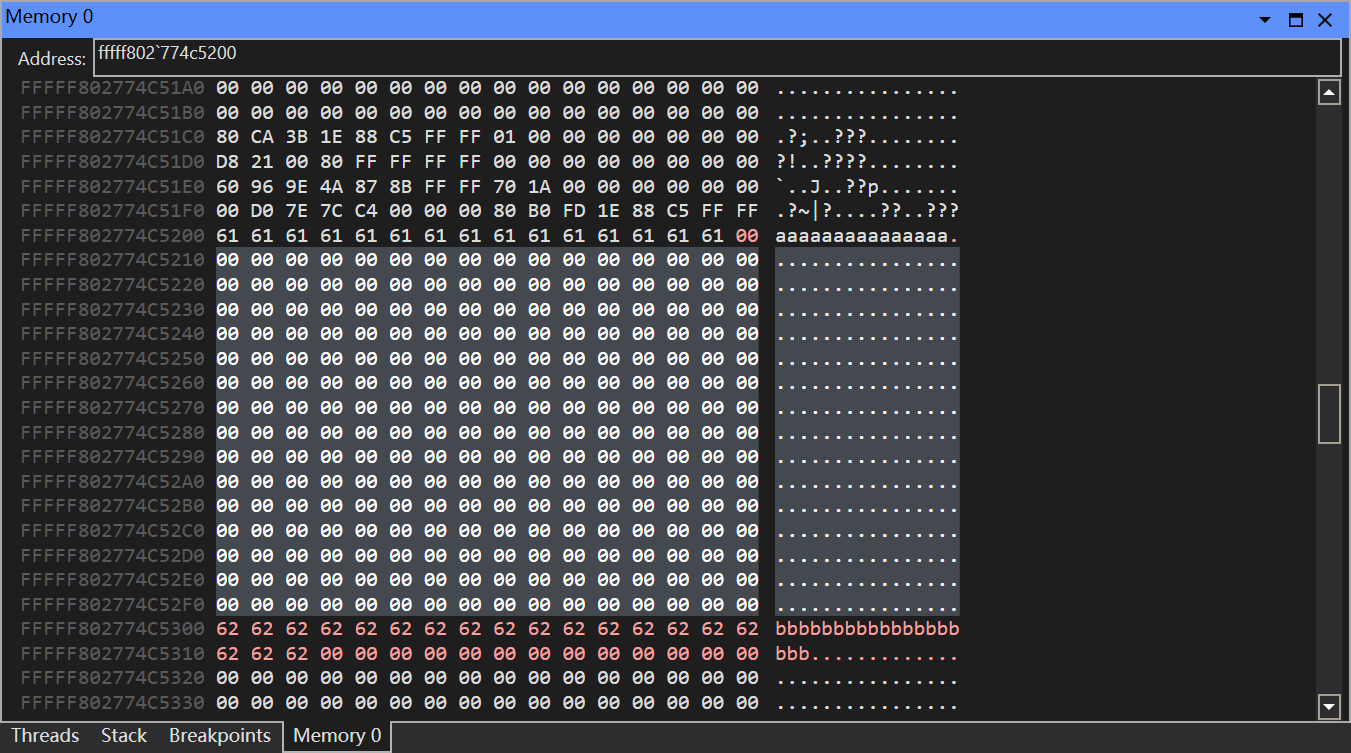

IOCT==0X222000时复制了用户名和密码的数据到内存中。

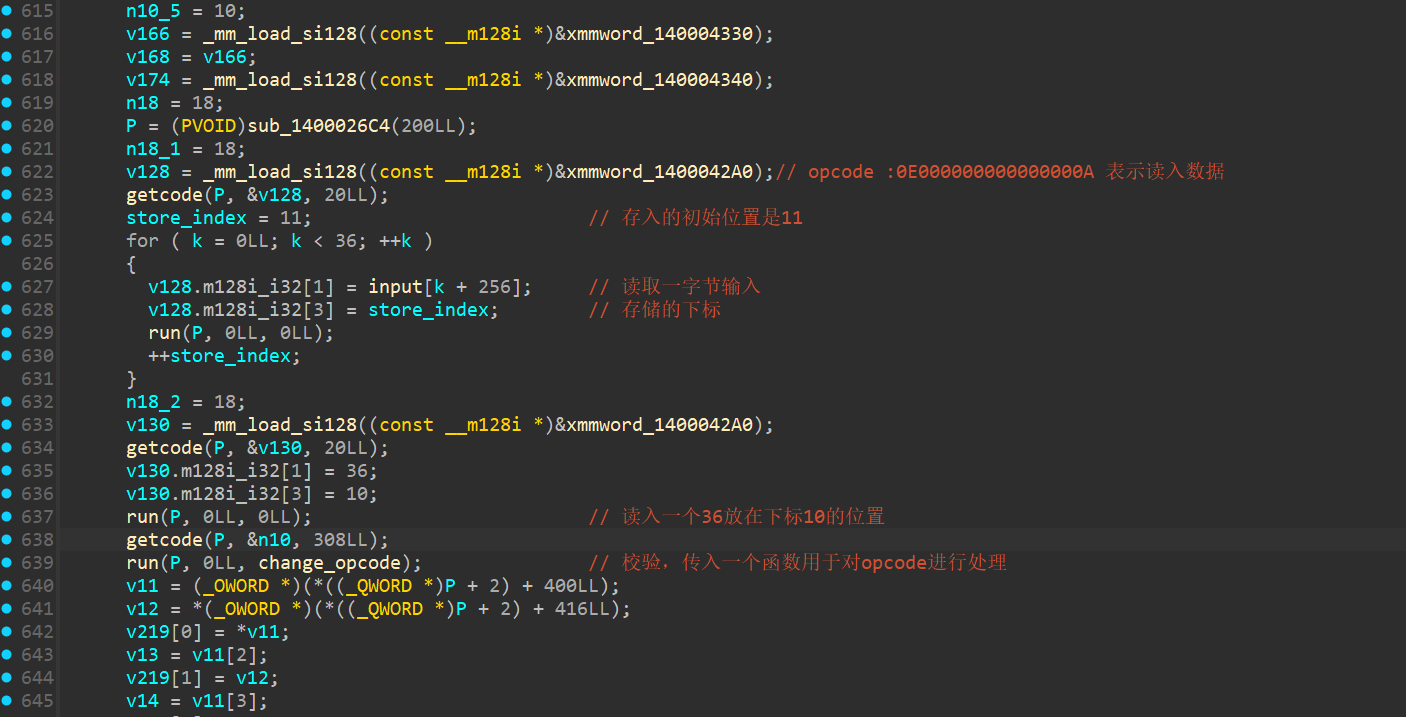

我们的输入被保存到140005200处并且前256字节是name，后256位是passwd。

IOCT==0X222004 是校验逻辑

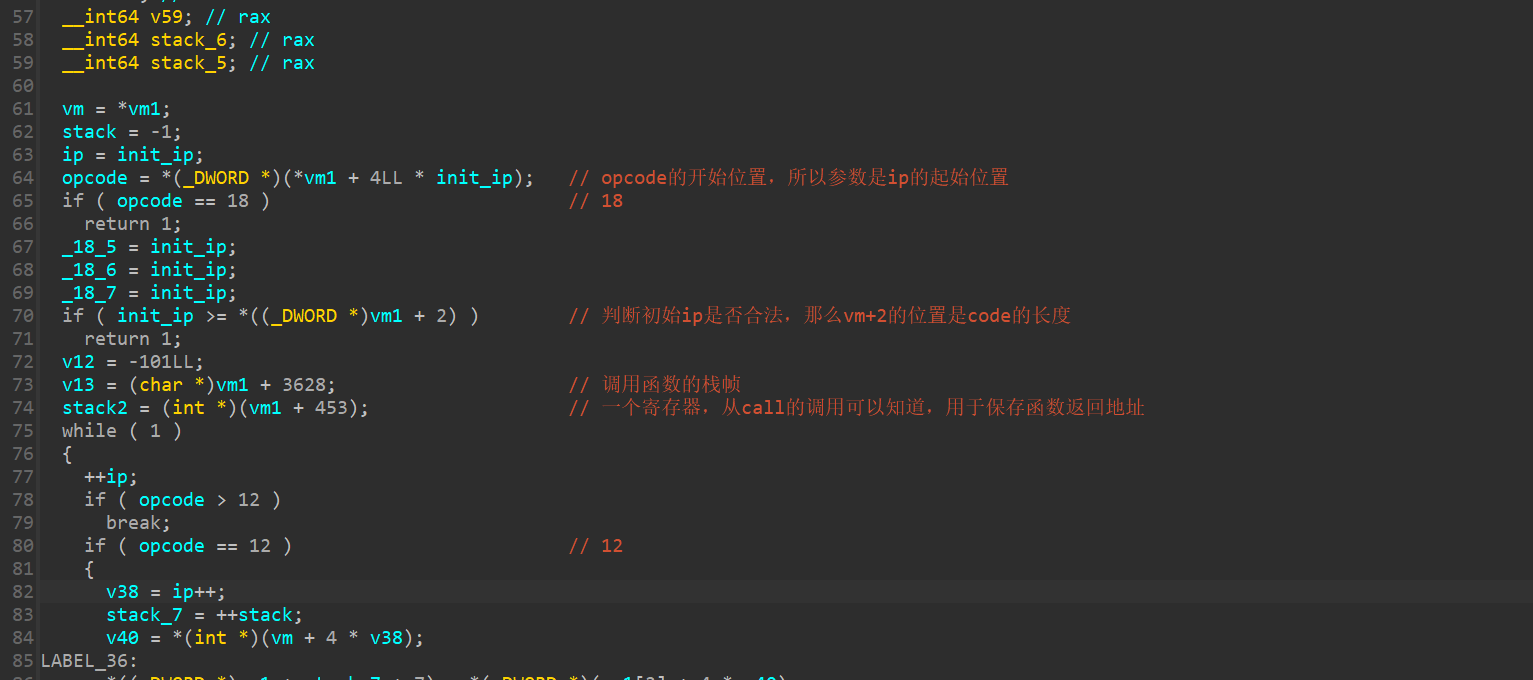

后面是一个虚拟机，分析后得到opcode。

code = {
    "ret1": 0, "add": 1, "sub": 2, "mul": 3, "xor": 4, "low": 5, "equl": 6, "ip": 7, "top==1": 8,
    "top==0": 9, "in": 10, "lea": 11, "lea1": 12, "str": 13, "str1": 14, "pop": 15, "call": 16,
    "ret2": 17,"ret3": 18,"jmp": 19, "jnz": 20, "jz": 21,"lea2": 22, "str2": 23,"smc": 24
}

调用逻辑如下

直接提取最后的opcode查看加密逻辑

unsigned int opc[] = {0x0000000a,0x00000000,0x00000018,0x005801c0,0xffa7fe4e,0x00000000,0x0000000a,0x00000000,0x00000018,0x20160070,0xdfe9ff9e,0x00000001,0x0000000a,0x00000000,0x00000018,0x4805801c,0xb7fa7ff2,0x00000002,0x0000000a,0x00000000,0x00000018,0x12016007,0xedfea007,0x00000003,0x0000000a,0x00000064,0x00000018,0x04805801,0xfb7fa80d,0x00000004,0x0000000c,0x0000000a,0x0000000c,0x00000000,0x00000005,0x00000008,0x0000004c,0x0000000a,0x0000000a,0x0000000c,0x00000000,0x00000001,0x00000016,0x0000000e,0x00000002,0x0000000a,0x0000000b,0x0000000c,0x00000000,0x00000001,0x00000016,0x0000000e,0x00000003,0x0000000c,0x00000002,0x0000000c,0x00000003,0x00000004,0x00000017,0x00000004,0x0000000c,0x00000000,0x0000000a,0x00000001,0x00000001,0x0000000e,0x00000000,0x0000000c,0x00000004,0x0000000a,0x00000001,0x00000001,0x0000000e,0x00000004,0x00000007,0x0000001e,0x00000012,0xffffc588,0x00000000,0x55555555,0x00000150,0x00000150,0x00000000,0x00000000,0x00000006,0x00000000,0x00000000,0x00000000};

分析一下内存结构

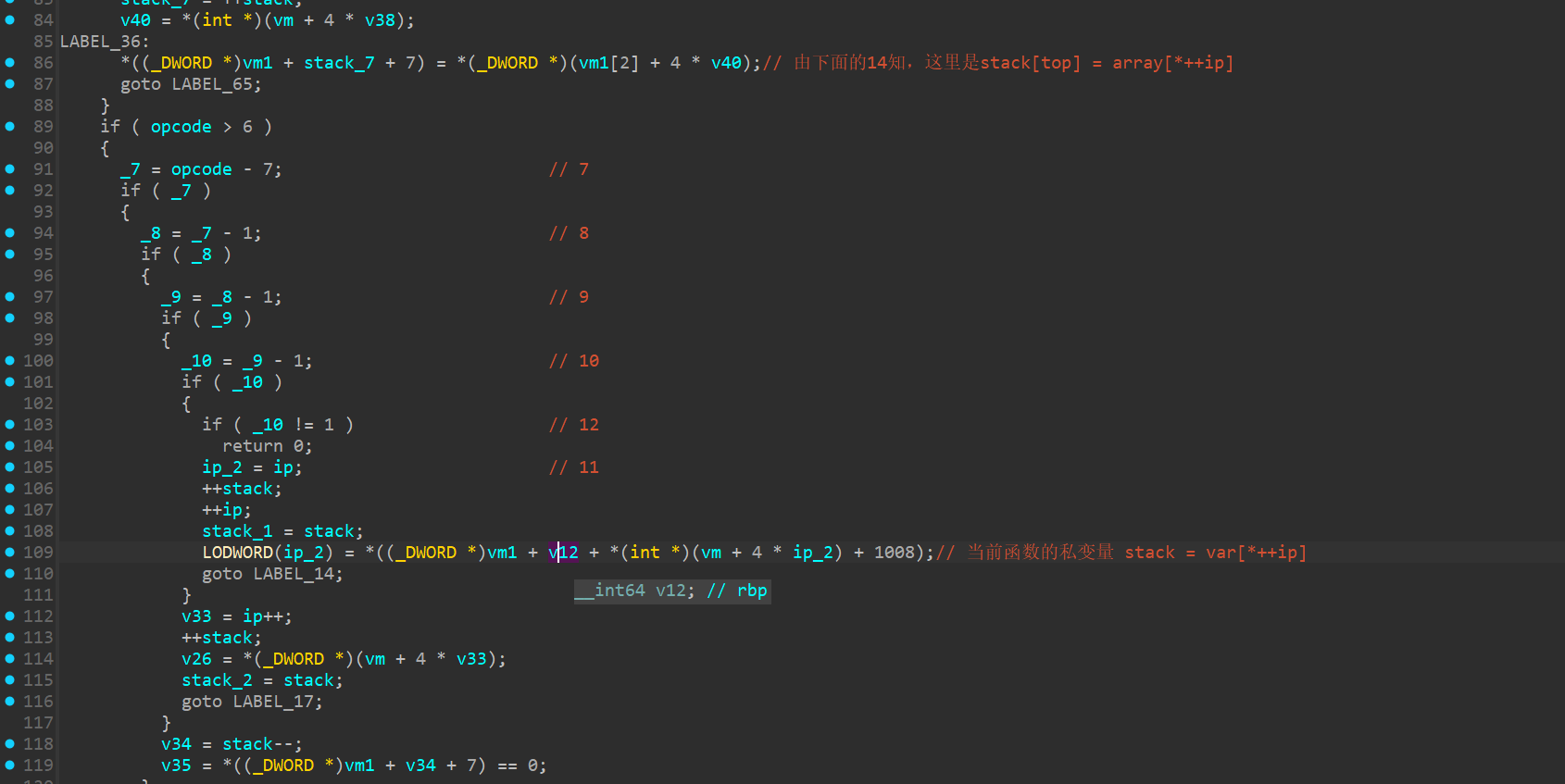

v13和stack2可从cal的分析得来，因为数据的加载和校验不在同一个虚拟机的函数，所以虚拟机是很可能有全局变量的。根据加载数据时的opcode(0E000000000000000Ah)发现他调用的存储是str1，这存储的就是全局变量，那么从全局变量中取出就是lea1。str2和lea2也都是在全局变量操作只不过索引不同。str和lea的存储位置和栈帧有关(在cal处可以看到)推测是函数的私有内存，而且私有内存的地址初始值是-101，只有在call的时候才会加上101，所以只有后面call的函数才有这个私有内存。

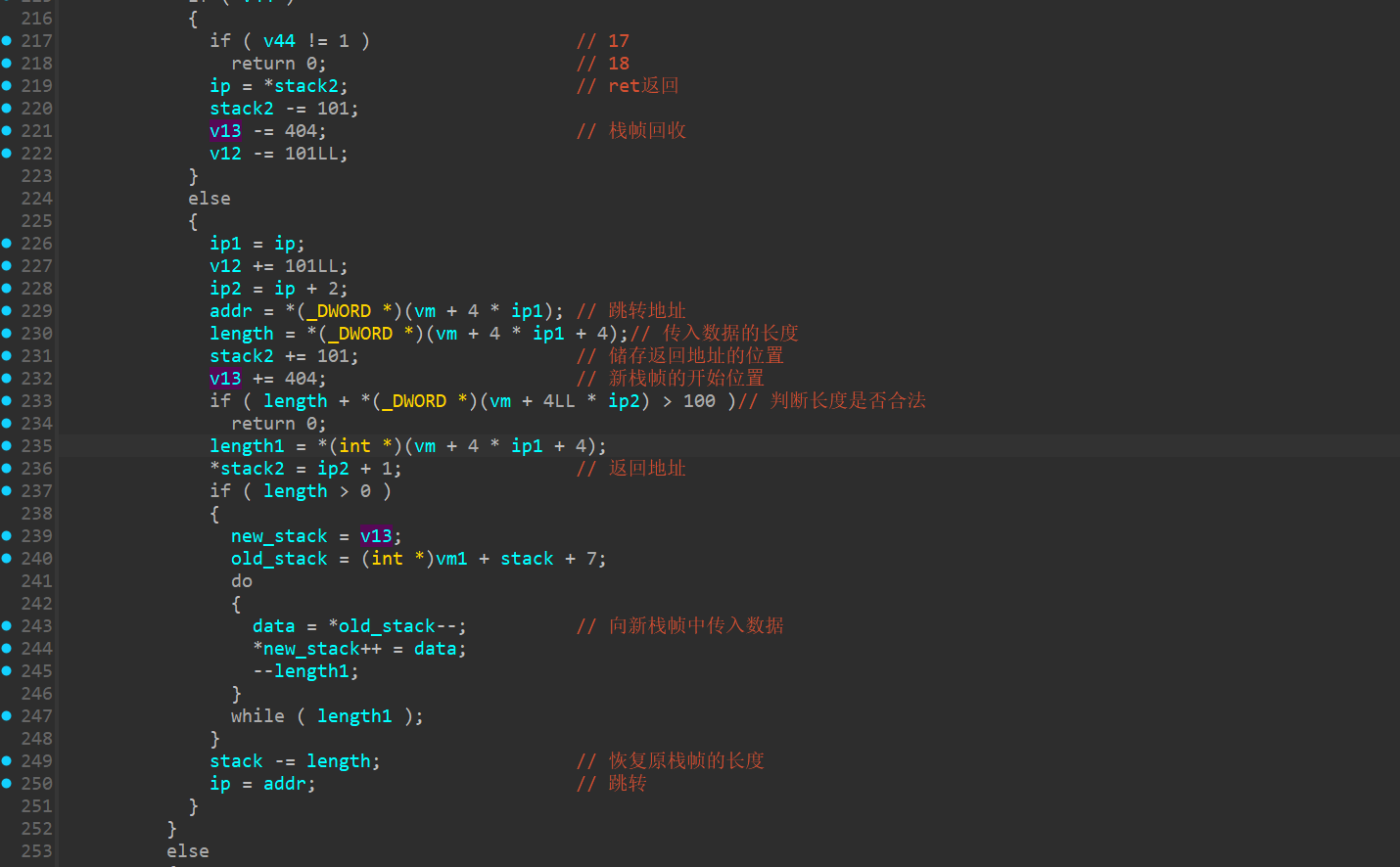

emm，算一下新cal的函数的内存分布。假设是第一个cal的函数:

stacklen: size
stackbase: vm1 + 3628 + 404 ; 4032
stackend:  vm1 + 8*453 + 101 + (ip+3) ; 大于3717
varindex: vm1 + *ip + 4*1008 ; 4032

我们发现函数的私有内存和栈帧的起始地址是相同的，所以新call的函数就只有一块内存，一起作为栈帧和内存使用。

所以内存布置如下，因为直接用结构体调用，所以数组的大小只要不过小就行了，顺序没有要求。

struct newStack{
	int memory[1000];
	int retaddr;
}

struct vm{
	int* opcode;
	int size;
	int array[1000];
	int length;
	int stack[1000];
	struct newStack nS[100];
}

import string

opcodes = {
    "ADD": 1,
    "SUB": 2,
    "MUL": 3,
    "XOR": 4,
    "LT": 5,
    "EQ": 6,

    "JMP": 7,
    "JNZ": 8,
    "JZ": 9,
    "JMP_REL": 19,
    "JNZ_REL": 20,
    "JZ_REL": 21,

    "PUSH": 10,
    "POP": 15,
    "LOAD_LOCAL": 11,
    "STORE_LOCAL": 13,
    "LOAD_GLOBAL": 12,
    "STORE_GLOBAL": 14,
    "LOAD_INDIRECT": 22,
    "STORE_INDIRECT": 23,

    "CALL": 16,
    "RET": 17,
    "HALT": 18,
    "SMC": 24,
}


class NewStack:
    def __init__(self, ret_addr=0):
        self.return_ip = ret_addr
        self.locals = [0] * 1000

class VM:
    def __init__(self, nglobals_val=200):
        self.code = []
        self.code_size = 0
        self.globals = [0] * nglobals_val
        self.stack = []
        self.call_stack = []

    def set_code(self, codes, code_size=None):
        self.code = codes
        if code_size is not None:
            self.code_size = code_size
        else:
            self.code_size = len(self.code)

    def vm_exec(self, start_ip, smc):
        ip = start_ip

        # 打印global中的参数
        for i in range(min(37, len(self.globals))):
            print(self.globals[i], end=" ")
        print()

        opcode = self.code[ip]

        while opcode != opcodes["HALT"] and ip < self.code_size:
            ip += 1  # 指向操作数或下一条指令

            if opcode == opcodes["ADD"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(a + b)
                print(f"{a} + {b} = {a + b}")

            elif opcode == opcodes["SUB"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(a - b)
                print(f" {a} - {b} = {a - b}")

            elif opcode == opcodes["MUL"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(a * b)
                print(f" {a} * {b} = {a * b}")

            elif opcode == opcodes["XOR"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(a ^ b)
                print(f" {a} ^ {b} = {a ^ b}")

            elif opcode == opcodes["LT"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(1 if a < b else 0)
                print(f" {a} < {b} == {a<b}")

            elif opcode == opcodes["EQ"]:
                b = self.stack.pop()
                a = self.stack.pop()
                self.stack.append(1 if a == b else 0)
                print(f" {a} == {b} == {a == b}")

            elif opcode == opcodes["JMP"]:
                target_ip = self.code[ip]
                ip = target_ip

            elif opcode == opcodes["JNZ"]:
                addr = self.code[ip]
                ip += 1
                val = self.stack.pop()
                if val == 1:
                    ip = addr

            elif opcode == opcodes["JZ"]:
                addr = self.code[ip]
                ip += 1
                val = self.stack.pop()
                if val == 0:
                    ip = addr

            elif opcode == opcodes["JMP_REL"]:
                offset_val = self.code[ip]
                ip = (ip - 1) + offset_val

            elif opcode == opcodes["JNZ_REL"]:
                offset_val = self.code[ip]
                target_addr = (ip - 1) + offset_val
                ip += 1
                val = self.stack.pop()
                if val == 1:
                    ip = target_addr

            elif opcode == opcodes["JZ_REL"]:
                offset_val = self.code[ip]
                target_addr = (ip - 1) + offset_val
                ip += 1
                val = self.stack.pop()
                if val == 0:
                    ip = target_addr

            elif opcode == opcodes["PUSH"]:
                value = self.code[ip]
                ip += 1
                self.stack.append(value)

            elif opcode == opcodes["LOAD_LOCAL"]:
                offset = self.code[ip]
                ip += 1
                current_context = self.call_stack[-1] # 加载当前上下文，即最里层函数
                self.stack.append(current_context.locals[offset])

            elif opcode == opcodes["LOAD_GLOBAL"]:
                addr = self.code[ip]
                ip += 1
                self.stack.append(self.globals[addr])
                print(f"LoadGlobal [{addr}] = {self.globals[addr]}")

            elif opcode == opcodes["LOAD_INDIRECT"]:
                addr_from_stack = self.stack[-1]
                value_from_globals = self.globals[addr_from_stack]
                self.stack[-1] = value_from_globals
                print(f"Load Global [{addr_from_stack}] = {value_from_globals}")

            elif opcode == opcodes["STORE_LOCAL"]:
                offset = self.code[ip]
                ip += 1
                value_to_store = self.stack.pop()
                current_context = self.call_stack[-1]
                current_context.locals[offset] = value_to_store

            elif opcode == opcodes["STORE_GLOBAL"]:
                addr = self.code[ip]
                ip += 1
                value_to_store = self.stack.pop()
                self.globals[addr] = value_to_store
                print(f"Store Global: [{addr}] = {value_to_store}")

            elif opcode == opcodes["STORE_INDIRECT"]:
                global_addr_operand = self.code[ip]
                ip += 1
                effective_address = self.globals[global_addr_operand]
                value_to_store = self.stack.pop()
                self.globals[effective_address] = value_to_store
                print(f"str2 global[globals[{global_addr_operand}] ({effective_address})] = {value_to_store}")

            elif opcode == opcodes["POP"]:
                self.stack.pop()

            elif opcode == opcodes["CALL"]:
                func_addr = self.code[ip]
                ip += 1
                nargs = self.code[ip]
                ip += 1
                nlocals_op = self.code[ip]
                ip += 1

                new_context = NewStack(ip)
                if nlocals_op > 100: return False

                for i in range(nargs):
                    new_context.locals[i] = self.stack[len(self.stack) - 1 - i] # 转移参数到新栈帧

                self.stack = self.stack[:-nargs] # 弹出参数

                self.call_stack.append(new_context)
                ip = func_addr

            elif opcode == opcodes["RET"]:
                last_context = self.call_stack.pop()
                ip = last_context.return_ip

            elif opcode == opcodes["SMC"]:
                change_code_val = self.code[ip]
                ip += 1
                smc(self, ip, change_code_val)

            else:
                print(f"VM Error: Unknown opcode {opcode} at IP {ip-1}.")
                return False # 未知操作码，执行失败

            if ip < self.code_size:
                opcode = self.code[ip]
            else:
                break
        return True


def py_int_handler(vm_instance, next_ip, value):
    if 0 <= next_ip < vm_instance.code_size:
        vm_instance.code[next_ip] += value
    else:
        print("error")
    return 0


def to_signed32(val):
    val &= 0xFFFFFFFF
    if val & 0x80000000: # 最高位为1，表示负数
        return val - 0x100000000
    return val

def main():
    opc_hex_values = [
        0x0000000a,0x00000000,0x00000018,0x005801c0,0xffa7fe4e,0x00000000,0x0000000a,0x00000000,
        0x00000018,0x20160070,0xdfe9ff9e,0x00000001,0x0000000a,0x00000000,0x00000018,0x4805801c,
        0xb7fa7ff2,0x00000002,0x0000000a,0x00000000,0x00000018,0x12016007,0xedfea007,0x00000003,
        0x0000000a,0x00000064,0x00000018,0x04805801,0xfb7fa80d,0x00000004,0x0000000c,0x0000000a,
        0x0000000c,0x00000000,0x00000005,0x00000008,0x0000004c,0x0000000a,0x0000000a,0x0000000c,
        0x00000000,0x00000001,0x00000016,0x0000000e,0x00000002,0x0000000a,0x0000000b,0x0000000c,
        0x00000000,0x00000001,0x00000016,0x0000000e,0x00000003,0x0000000c,0x00000002,0x0000000c,
        0x00000003,0x00000004,0x00000017,0x00000004,0x0000000c,0x00000000,0x0000000a,0x00000001,
        0x00000001,0x0000000e,0x00000000,0x0000000c,0x00000004,0x0000000a,0x00000001,0x00000001,
        0x0000000e,0x00000004,0x00000007,0x0000001e,0x00000012,0xffffc588,0x00000000,0x55555555,
        0x00000150,0x00000150,0x00000000,0x00000000,0x00000006,0x00000000,0x00000000,0x00000000
    ]
    bytecode = [to_signed32(x) for x in opc_hex_values] # 将字节码转换为有符号32位整数，在smc中使用到了，原字节码也是int类型的
    input_string = (string.ascii_uppercase+ string.ascii_lowercase)[:36:]

    vm_instance = VM()
    vm_instance.globals = [0] * 1000
    vm_instance.globals[10] = 36 # 数据长度

    for i in range(min(len(input_string), 36)):
        if (i + 1) < len(vm_instance.globals):
            vm_instance.globals[i + 11] = ord(input_string[i]) # 读取输入到global中

    vm_instance.set_code(bytecode, len(bytecode)) # 设置字节码

    success = vm_instance.vm_exec(start_ip=0, smc=py_int_handler)

    if success:
        print("\nsuccess")
    else:
        print("\nfailed")

if __name__ == "__main__":
    main()

模拟执行并进行打印，大概可以看出是前一位异或后一位。最后的判断逻辑是先判断用户名再判断passwd，两者的加密方法是相同的。

但是这样来说最后的密文应该只有35位，可现实是36位，不难发现，其实字符长度36也参与了异或运算。

如果没有想到第一位是36，可以先忽略第一个字节把后面的字节进行前后异或解密，再用结果去爆破一下即可，因为缺的只是第一位，而异或是有连续性的，只需要全部再异或某一个字节就行。这里用cyber chef的xor brute force解密。结果证明这个字节是24。

密文如下，解密就行

data = [0x45,0x57,0xE,0x5C,0x2,0x4,0x52,0x6,0x1B,0x1A,0xE,0x1,0x5E,0x4B,0x19,0x56,0x6,0x55,0x1C,0x14,0x5C,0x5D,0x9,0x1C,0x1D,0x1,0x0,0x50,0x0,0x4,0x6,0x52,0x0,0x2,0x55,0x56,0x6A,0x4,0x1D,0x7,0x6,0x1D,0x9]

passwd = data[:36:]

res = [0]*37
res[0] =36 #补回第一位

for i in range(1,37):
    res[i] = data[i-1] ^ res[i-1]

flag = "".join(chr(i) for i in res)

print(flag)
#d3ctf{a68dfb06-798f-4bd1-9e81-011aaec113f0}
